WARREN JAGUAR

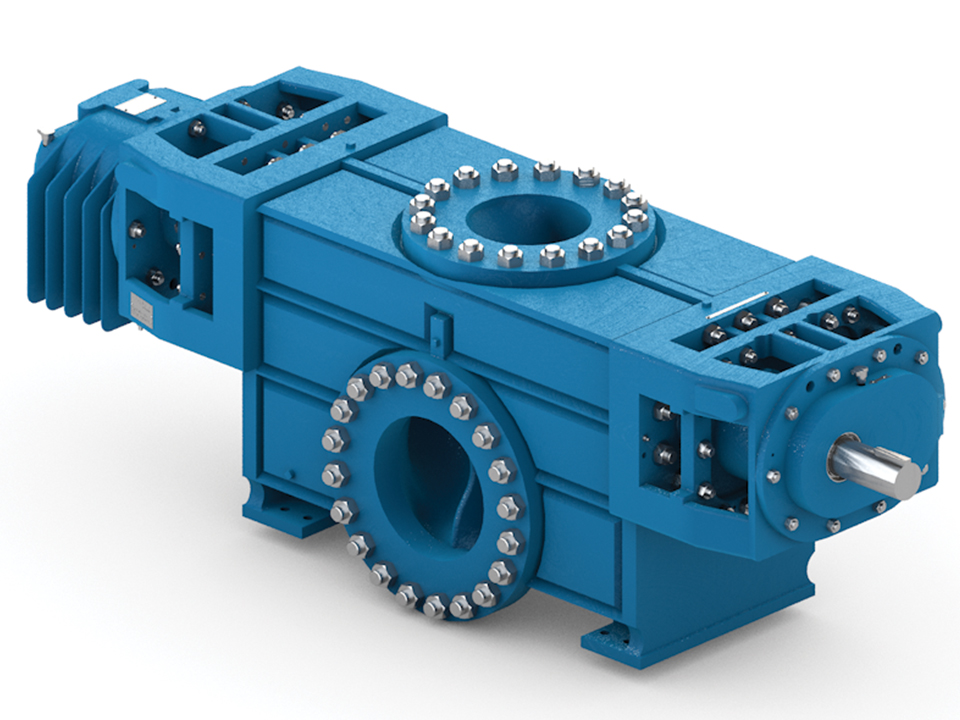

WARREN JAGUAR 2200 SERIES PUMPS
VERSATILE TWO-SCREW SPECIALTY PUMPS ACCOMMODATE VIRTUALLY ANY FLUID
The versatile Jaguar series of Warren brand positive displacement screw pumps offers flexible design and material options for nearly any flow, pressure and
viscosity requirement. Notable for their ability to provide very low NPSHr, Warren Jaguar pumps are ideal for tank unloading and high viscosity fluids, where NPSHa may be severely limited. Like all two-screw pumps, they are low shear, so fluids are safely moved in applications ranging from specialized niche processes to boosting.
Warren Jaguar’s unique six-bearing design evolved from more than 50 years of experience in high-pressure applications. Inside of a highly durable solid
cast body and coated surface, customers gain custom engineered solutions for capacities as low as 200 gpm or as high as 4,800 gpm, suction inlet pressures
to 1650 psi, discharge pressures to 2,000 psi, and viscosities as low as 5 cSt or as high as 100,000 cSt. Jaguar’s optional hopper suction design for very low NPSH combined with elevated temperature capability serves high-viscosity applications like polymers, adhesives, asphalt and foods – materials that would otherwise be difficult to get into the pump.
High performance meets high reliability
Ability to Handle Multiple Liquids at Multiple Viscosity Rates
Because they're designed to move fluid at a consistent rate, regardless of pressure, twin-screw pumps deliver results where centrifugal pumps are unable to and are able to actually increase efficiency as viscosity rises.
But twin-screw pumps don't just offer performance, since they are designed to eliminate metal-on-metal contact which means a longer life, improved reliability and less downtime.
In addition, unlike other pump options, twin-screw pumps can:
- Tolerate contamination
- Handle a large range of viscosities and fluids
- Low NPSH required
- Run dry
- Low fluid sheer
- Operate at variable speeds
And with twin-screw pumps' ability to handle multiple liquids at multiple viscosity rates, they can be used for a wide range of applications.
- A variety of suction options available
- Accommodates most seal designs
- Capable of handling shear sensitive fluids
- Available in a number of materials
- Suited for: chemical, petroleum, power, food or barges
Specialty JAGUAR Series
The 2200 Series commonly known as the Jaguar Series is a positive displacement pump capable of handling viscosities to 150,000,000 ssu. Basically, the pump is made up of two sets of opposed screws. Each set of screws conveys liquid toward the center of the pump where the discharge port is located. Since hydraulic forces are opposite and equal, the rotor is hydraulically balanced in an axial direction.
Specifications:
Series Flow Range Maximum Pressure
Jaguar |
GPM |
L/M |
PSI |
BAR |
J-10X |
15-40 |
55-150 |
1000 |
69 |
J-20X |
30-90 |
110-340 |
1000 |
69 |
J-30X |
60-200 |
230-757 |
1000 |
69 |
J-40X |
90-350 |
340-1325 |
1000 |
69 |
J-50X |
120-600 |
455-2270 |
1000 |
69 |
J-60X |
220-1100 |
830-4160 |
800 |
55 |
J-70X |
420-3000 |
1590-11350 |
450 |
31 |
J-80X |
580-4800 |
2200-18170 |
400 |
28 |
- Casing and bearing housing - Cast steel, stainless steel or iron, with chrome-plated bores for added lifetime
- Rotors - Standard material - 4340 steel (ASTM A668 Class M) with optional hardening and plating available
- O-rings - Viton (in contact with pumpage), nitrile (in contact with lube oil)
- Casing and bearing housing Cast steel, stainless steel or iron, with chrome-plated bores for added lifetime
- Rotors Standard material - 4340 steel (ASTM A668 Class M) with optional hardening and plating available
- O-rings Viton (in contact with pumpage), nitrile (in contact with lube oil)
- Seal Packing; single or double component mechanical seals; single or double cartridge mechanical seals available
- Flow rate range 10 gpm - 4,800 gpm (2 - 1,090 m3/h)
- Differential pressure Up to 1000 psi
- Outlet pressure 2000 psig (139 bar)
- Inlet pressure Up to 1650 psig (114 bar)
- Viscosity 5 - 100,000 cSt
- Temperature -20° F - 750° F
- Speed 1780 rpms
- Drive Direct only
- Rotation Clockwise facing pump driveshaft
- Mounting Horizontal
- Port Connections Per ANSI B16.5, 300# inlet, 300# discharge
- Accessories Upon request, a temperature and vibration monitor is provided with 1/2” NPT connection
- Timing gears Herringbone, hardened
- Bearings
- Six-bearing design with a double-row
28 – 138 bar/400 – 2,000 PSIG
38 – 18,170 l/min / 10 – 4,800 GPM
1 – 100,000 mm2/s
399°C / 750°F
