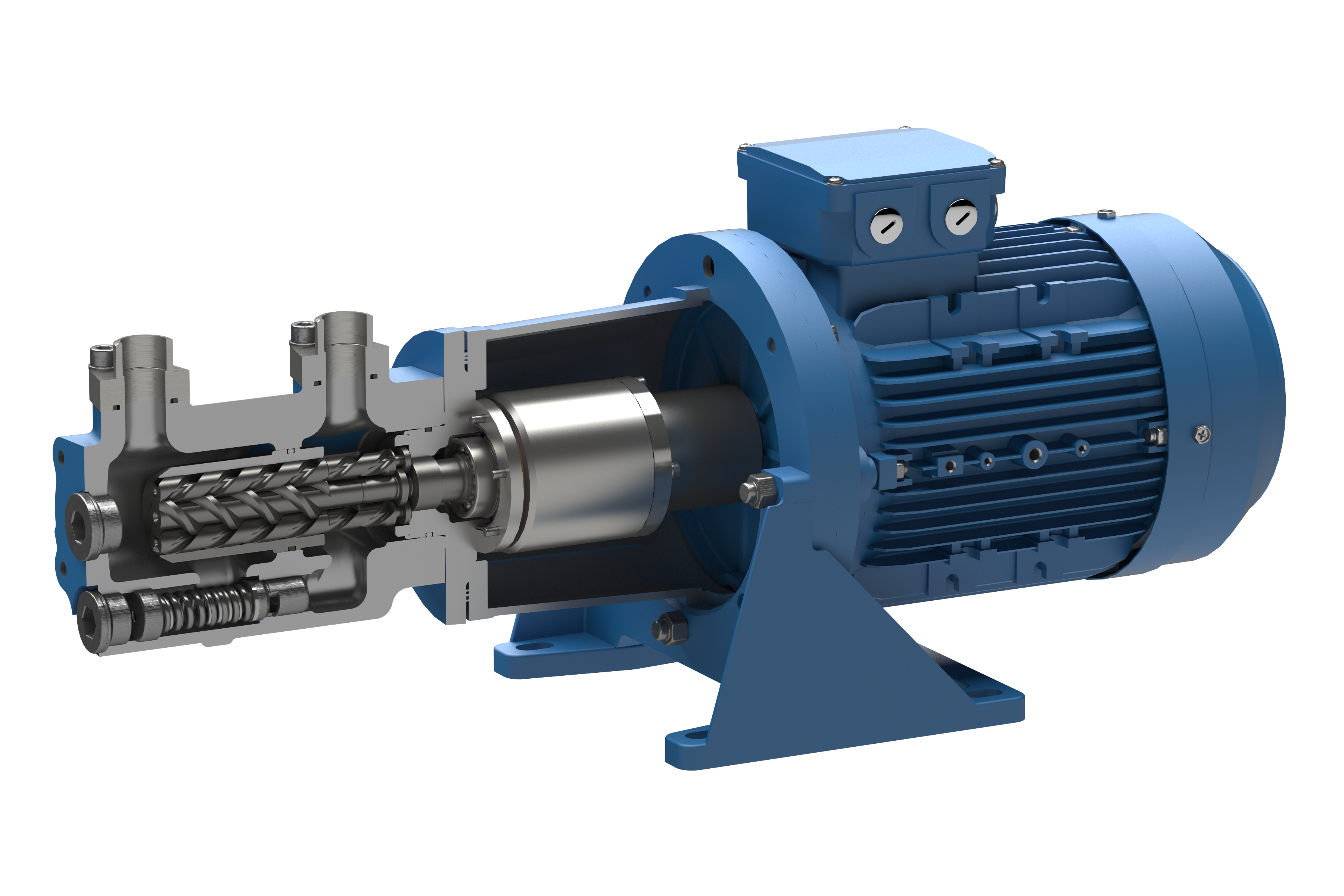

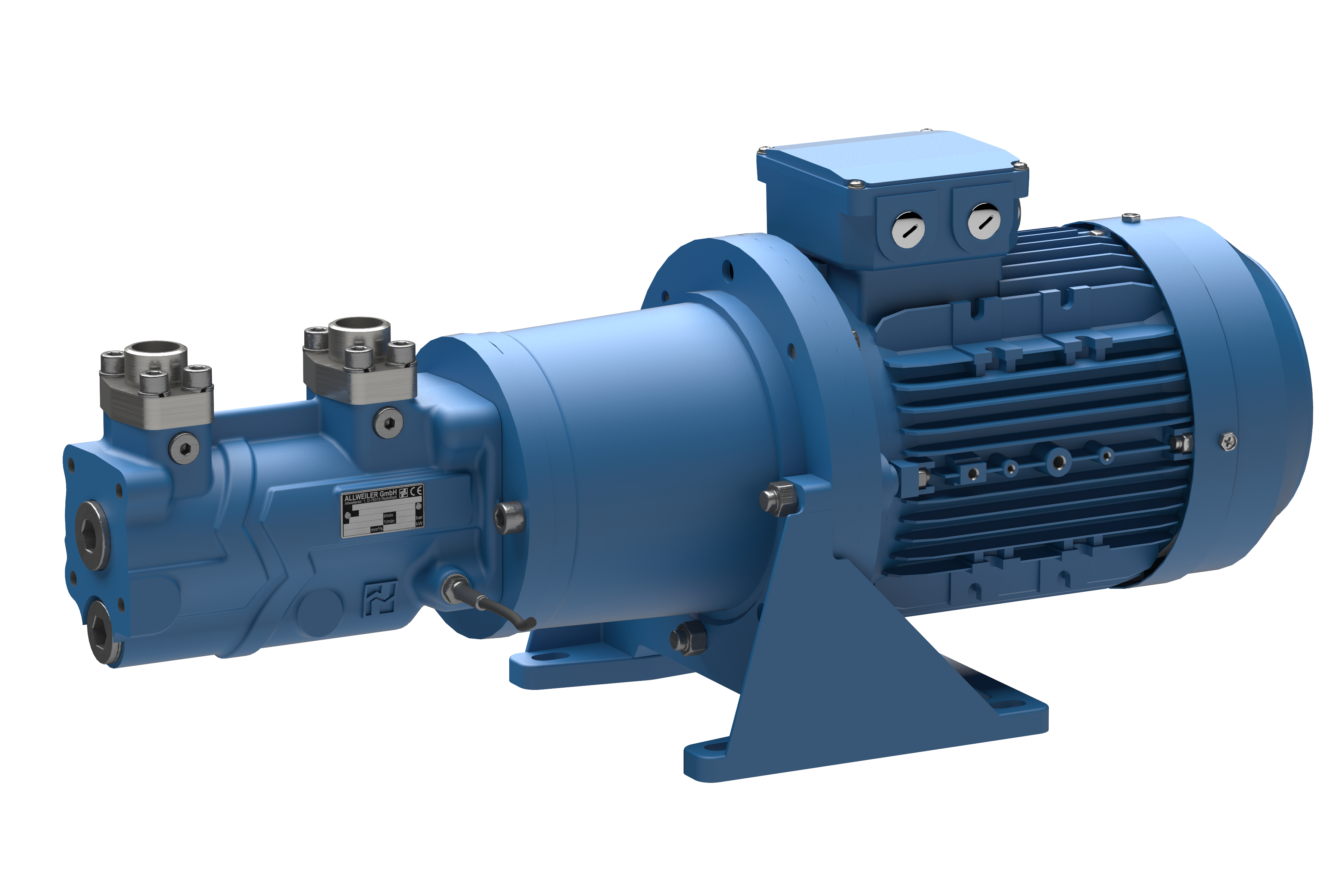

Allweiler Magdrive AFM Series Three-Screw Pump
Three-Screw pumps with magnet drive
No seals, for hazardous liquids and applications up to 40 bar.
General Information
Pedestal mounting
Dry installation
In-tank installation
Vertical installation
Self - priming
With magnetic drive
Horizontal installation and Bulkhead mounting (AFI, AFT and AFM only)
Other data
Data
Series Magdrive AFM
Capacity Q up to 112 l/min
Inlet pressure ps up to *)7 /**)25 bar
Discharge pressure pd up to 40 bar
Differential pressure pdiff up to 40 bar
Viscosity v up to 750/3000 mm²/s
Fluid temperature t up to 150 °C
Speed n up to 3600 1/min
*) AFM-T / F vis:750 mm²/s **)AFM vis:3000 mm²/s
High Reliability & long Service life
Lowest Total Cost of Ownership
High Efficiency
Lowest Maintenance Cost
Ease of Installation & Commissioning
Smooth Operation
Low Noise & Vibration
Flow rate
Viscosity
Max diff pressure
Temp
